Overview：

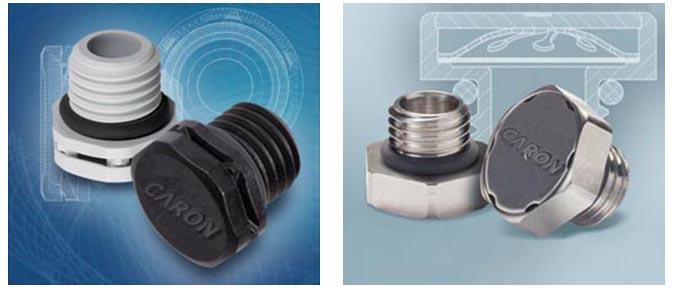

Screw Vents are engineered to provide oleophobic protection and withstand the mechanical stresses of challenging environments. Choose from a full range of sizes and performance options to meet all your application needs.

• Micro Series has a compact, low-profile design that meets some of the industry’s

   toughest standards, making it ideal for today’s smaller (up to 2 l) housings.

• Standard Series offers reliable venting for volumes up to 5 l, and comes in two colors

   and two thread sizes for different wall thicknesses, with or without a counter nut.

• High Airflow Series has the protection level of “Standard” – with nearly 10 times

   the airflow. For  housings up to 50 l, it easily manages the strong pressure differentials

   caused by extreme weather.

• Super High Airflow Series maintains exceptionally high airflow in extra-large

   enclosures (volumes up to 200 l) and meets the most rigorous standards.

• Stainless Steel Series offers premium-level durability, corrosion- and chemical

   resistance, to reliably protect enclosures up to 20 liters in the most extreme conditions.

Characteristics and Advantages：

• Easy to install: ensures fast, foolproof integration for durable performance in any

   application.

• Increased safety: the rugged screw-in construction, improved cap design and O-ring keep

   the vent reliably secured in the housing.

• Reliable protection: even after immersion, the Membrane blocks contaminant ingress.

• Rugged durability: engineered for chemical, UV and temperature resistance, and hydrolytic

   stability.

• Flammability resistance: All PolyVent caps, bodies and O-rings are rated UL 94 V-0.

   PolyVent XS, Stainless Steel and Ex+ also incorporate a UL 94 VTM-0 rated membrane.

Products：

• Standard color is black. Other colors are available upon request.

• IP68 tests resistance to 2 meters of water for 60 minutes

• Plastic Vent Body constructed of UV Resistant Nylon PA6 Plastic (ULV0 Rated)

• O-ring is Silicone with Shore 60A Hardness (ULV0 Rated)
